How Does MaxJax Work?

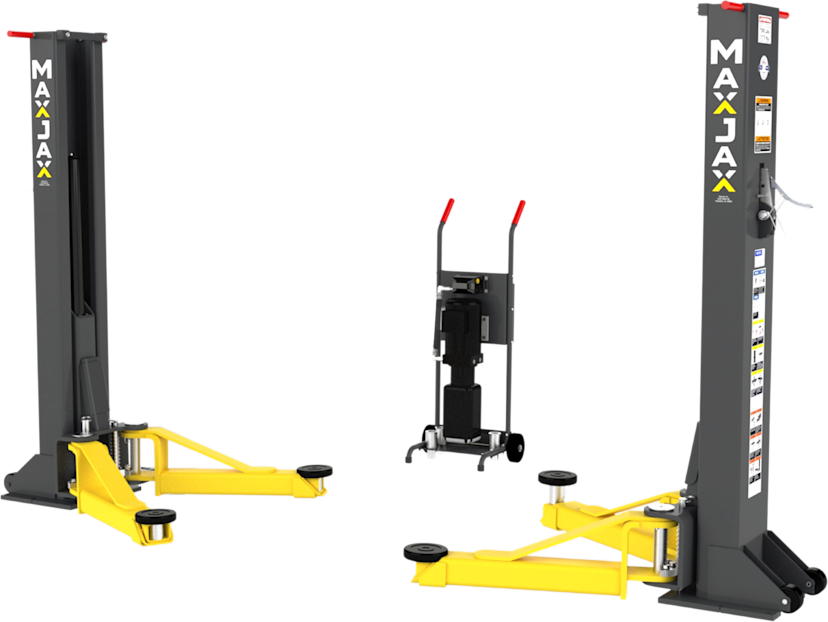

MaxJax combines the undercar access and lifting capability of a two-post lift with a removable design built for garages and shops where space is limited. During use, each column securely bolts to floor anchors installed in the concrete. When you’re finished, simply unbolt the columns, roll them out of the way and reclaim your floor space.
Find the Right Spot for Your MaxJax
Proper installation starts with the right location. Learn what to consider before installing your floor anchors, including available space, ceiling height, concrete requirements and vehicle positioning.

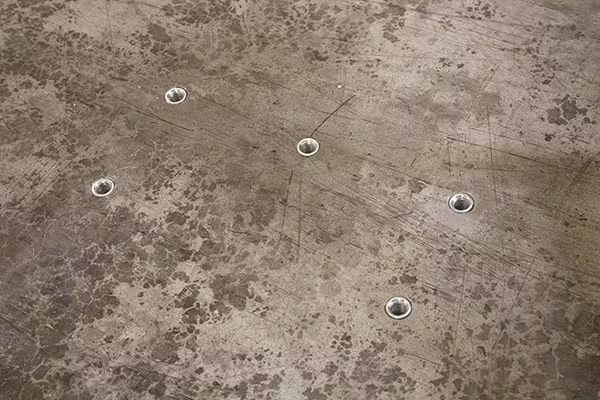

1. Install Anchor Bolts
MaxJax concrete anchors are internally threaded to provide flush-mount installation in your concrete floor and remain there permanently.

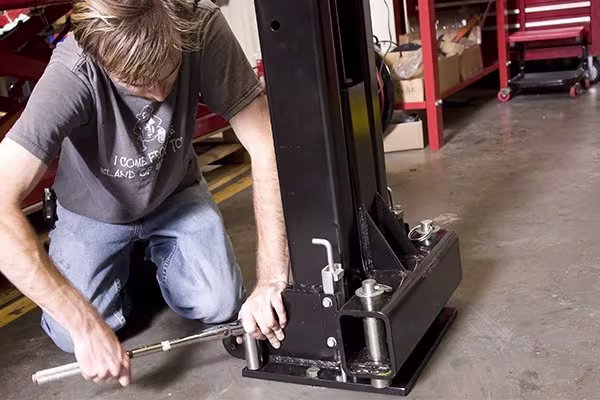

2. Roll Columns Into Position
Roll MaxJax columns over the recessed anchors then secure each column to the floor using the five 5/8" x 2" high-yield hex bolts.

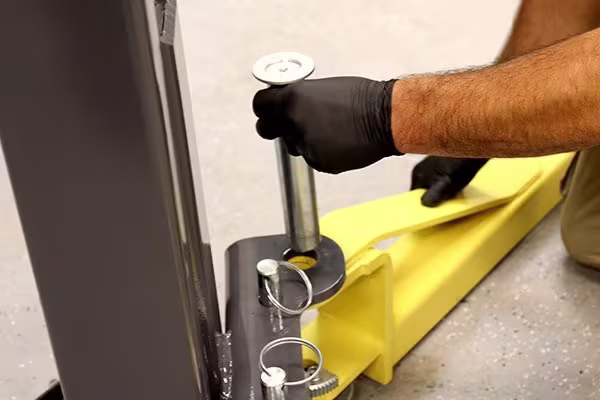

3. Attach Adjustable Lift Arms
Attach the adjustable lift arms to the MaxJax columns and install the drop-in pivot pins.

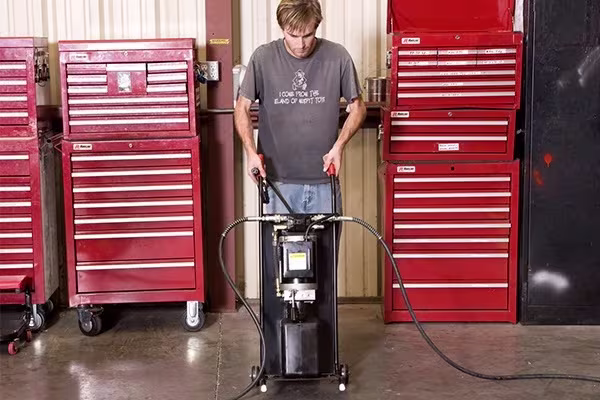

4. Position Mobile Power-Unit Cart
Position the MaxJax's mobile power-unit cart at the front or rear of the vehicle.

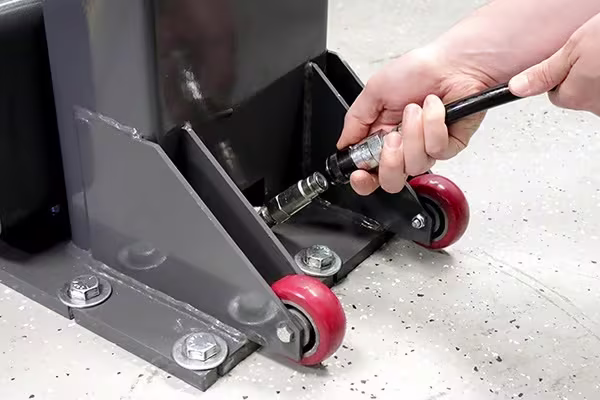

5. Connect Hydraulic Hoses
Attach the quick-connect/disconnect hydraulic couplers to the back of each column.
MaxJax Portable Car Lift FAQs
MaxJax delivers the functionality of a two-post car lift in a removable, space-saving design. The columns securely bolt to anchors installed in your concrete floor during use, providing a stable lifting system with full undercar access. When the job is finished, unbolt the columns, roll them away and reclaim your garage or shop space.
MaxJax gives home garages and professional shops the flexibility to add serious lifting capability without permanently dedicating floor space to a traditional two-post lift. Its removable columns make it ideal for garages with limited space, multi-use work bays, temporary service areas and shops that need greater flexibility from every square foot.
MaxJax is engineered to be securely anchored to the concrete floor whenever a vehicle is being lifted. Heavy-duty floor anchors provide a solid connection between each column and the concrete, creating the stable foundation required for safe operation while still allowing the columns to be removed when the lift is not in use.
Yes. The compact column height and mid-rise lifting design make MaxJax an excellent choice for garages and shops where a conventional full-height two-post lift may not fit. You get generous undercar access without requiring the ceiling height typically associated with a full-size automotive lift.
Yes. That’s one of the biggest advantages of MaxJax. Once the lift is lowered and unloaded, the columns can be unbolted from their floor anchors and rolled away for storage. The recessed anchors stay in the concrete, allowing you to quickly reinstall MaxJax when you’re ready to lift again.
Let’s Find the Right MaxJax for You
Have questions about fitment, installation or choosing the right setup for your home garage or professional shop? Our team is here to help you find the MaxJax solution that works for your space and your needs.
