MaxJax MAX7 Ultimate Portable Car Lift Package - 7,000-lbs. Capacity
IN STOCKSKU 5176050
$5,925.00
Flexible business financing available through Navitas.

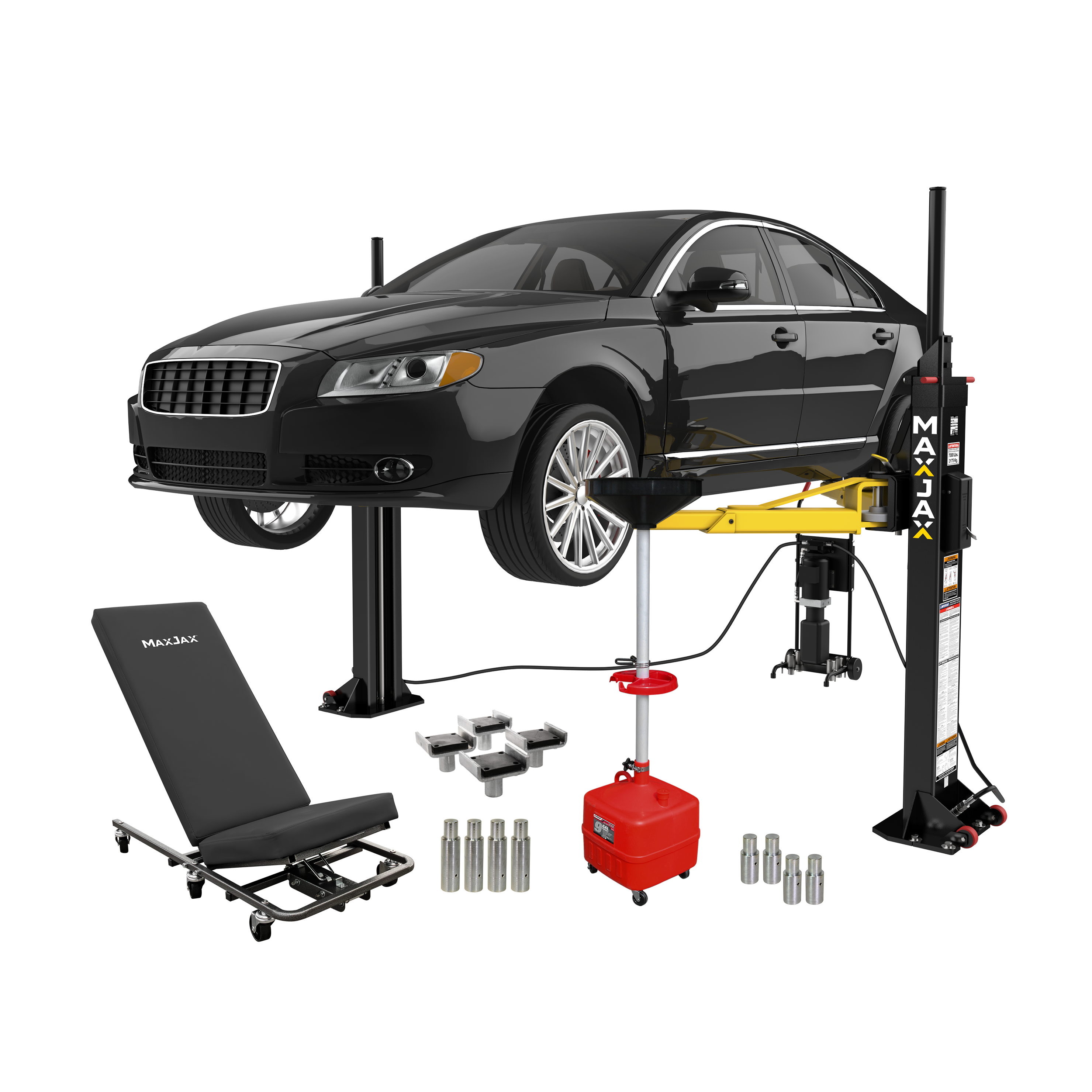

MAX7 Ultimate Package: Get Under Your Next Big Project
The repair you have been planning. The upgrade waiting for a free weekend. The restoration that deserves more time in the garage. The MaxJax MAX7 Ultimate Package puts a 7,000-lb.-capacity portable two-post car lift and useful under-car service accessories at the center of those projects. Tall adapters and frame cradle pads add lifting-point options, an oil drain handles used-oil collection, and a reclining creeper supports you while you work beneath the vehicle.
The new MAX7 gives that setup a substantial upgrade: BendPak ASARS™ automatic swing-arm restraints and 3 inches of additional lift height over the previous M7K. Telescoping screw pad adapters now come with the lift, too. The lift, contact accessories and reclining creeper put the focus on getting under the vehicle and into the project.

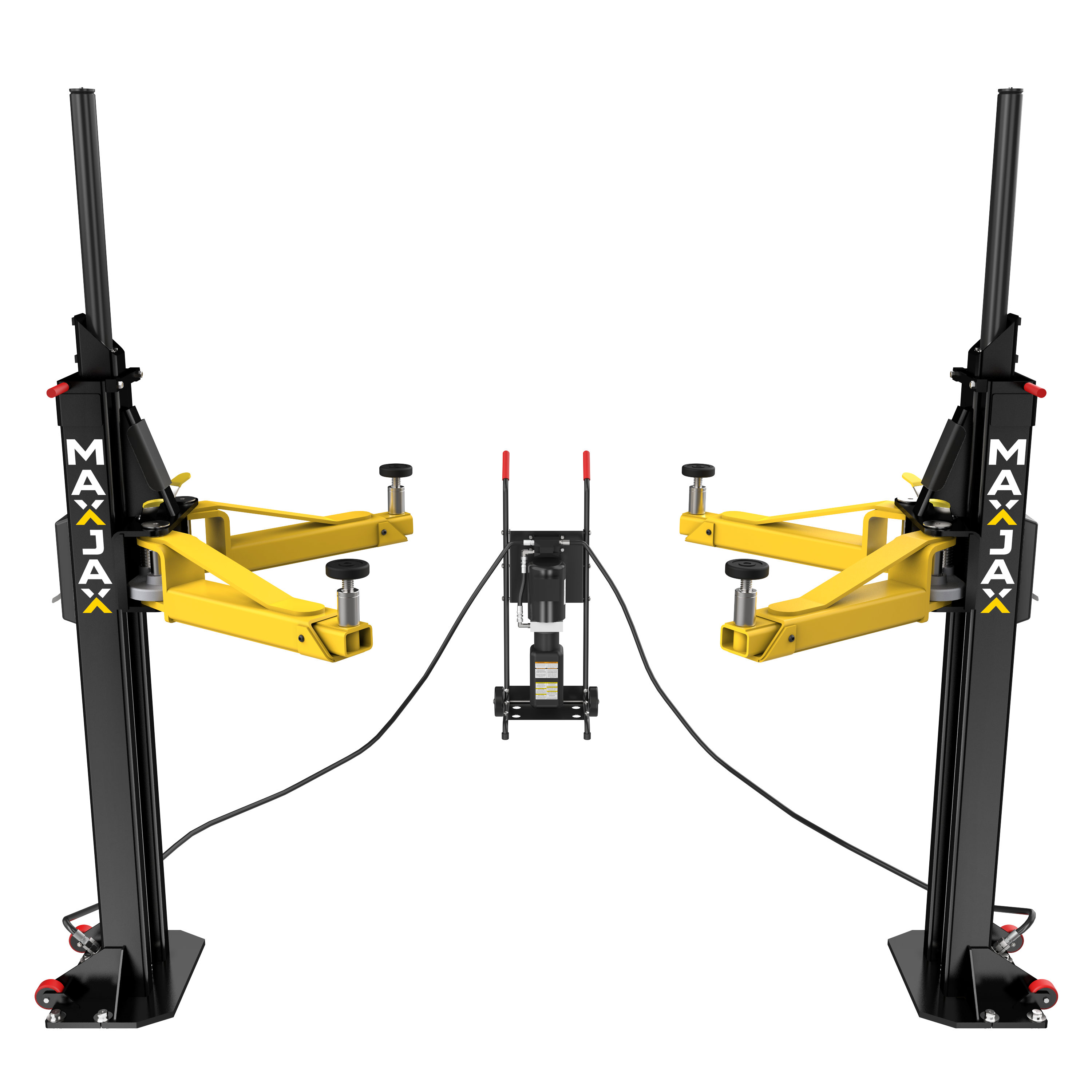

From Lifting-Point Setup to Oil Service to Creeper Work
A well-equipped project garage needs more than lifting capacity. The Ultimate Package brings together accessories for several stages of the job. Tall adapters provide additional pad-height options, while frame cradle pads accommodate compatible frame lifting points. They complement the MAX7’s included telescoping screw pad adapters, which use 35 mm pins and offer 1.5 inches of lift-pad adjustment.
For under-vehicle service, the oil drain collects used oil and the reclining creeper supports your working position. That combination makes this portable car lift package especially appealing for hands-on owners planning maintenance, repairs and underbody upgrades. The included accessories give each part of the setup a purpose: establish contact at suitable lifting points, collect the used oil, then support yourself for the task ahead.

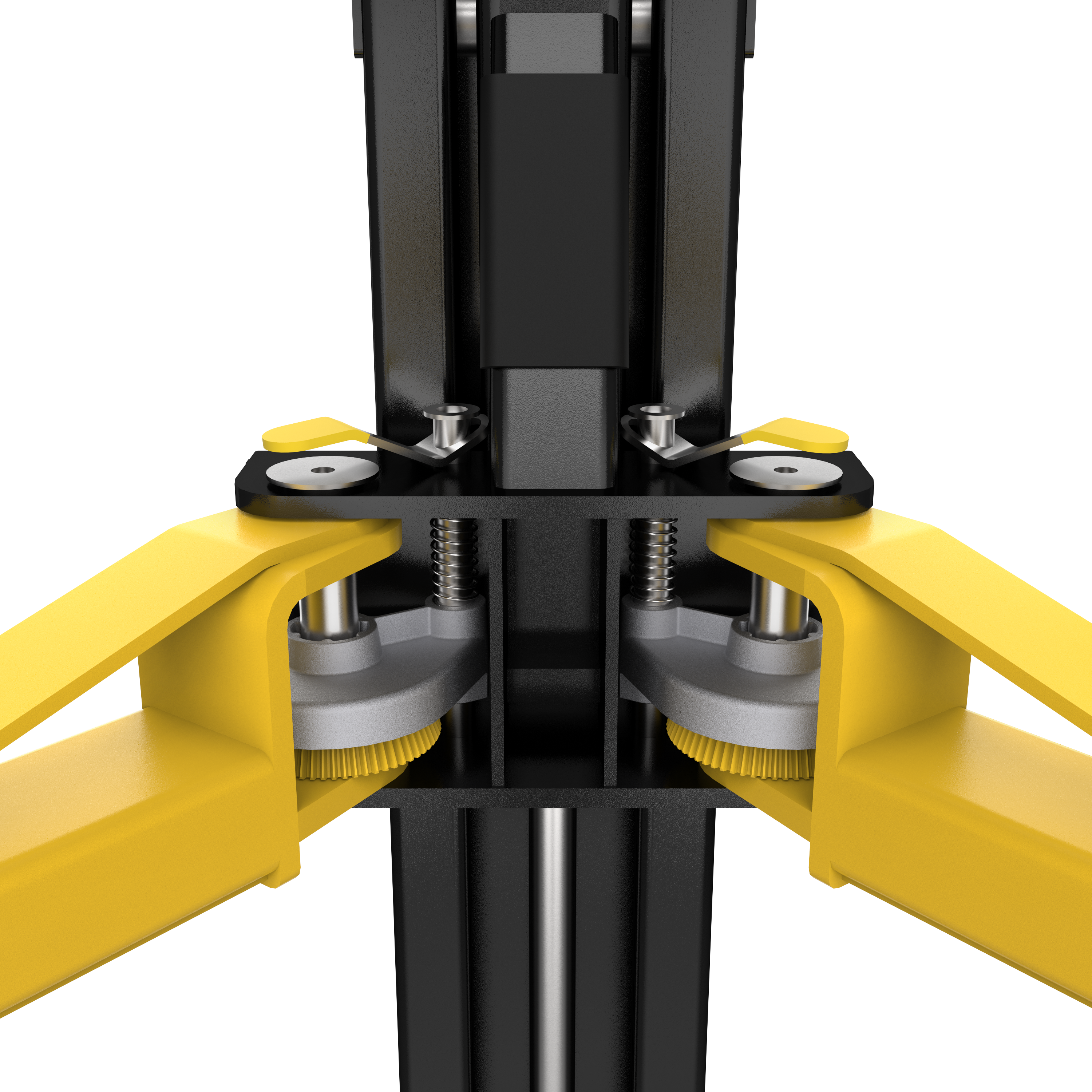

Extra Working Room. BendPak Arm Restraint Technology.
When your project brings you beneath the vehicle, the MAX7’s additional 3 inches of lift height become a practical advantage. Maximum lifting height reaches 50.25 inches, measured with the lift pad adjusted to its high setting and one stackable adapter. The extra clearance gives you more room to position yourself and work with tools under the car.
BendPak’s Automatic Swing Arm Restraint System (ASARS™) adds another major improvement. ASARS automatically locks the swing arms as the lift rises, with 360° holding grip to help prevent unintended arm movement during lifting and service. Separate from the arm restraints, seven lift-height safety lock positions provide a choice of working elevations. The hydraulically equalized lifting system synchronizes the two sides as the vehicle rises.

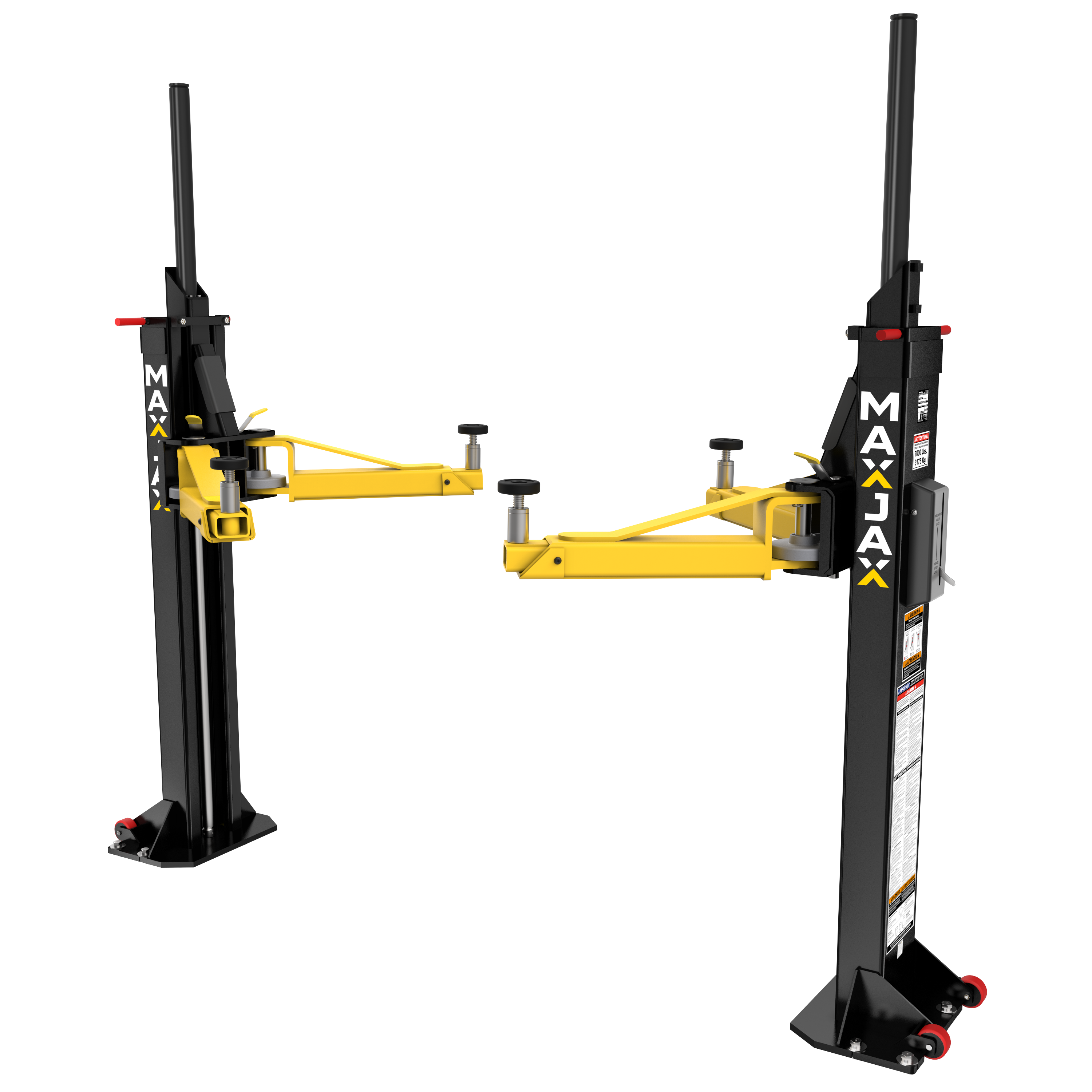

Make the Garage Your Project Space, Then Open It Back Up
Keep your garage useful between projects. MAX7 columns bolt securely to the floor for lifting, then can be disconnected, removed from their mounting locations and rolled aside for storage. Recessed drop-in anchors remain in the floor, retaining the prepared locations for future setup. The mobile power unit cart supports the hydraulic power unit and flow divider.
Configure column spacing from 105 to 135 inches between the base plates and use telescoping arms that reach from 26.5 to 41.25 inches, measured from the arm pivot to the lift-pad center. The columns stand 67.25 inches overall; cylinder heads reach 95.75 inches above the floor at full rise. For an owner balancing an ongoing vehicle project with everyday garage use, the Ultimate Package delivers lifting capability, service accessories and a workspace that can change with the job.
Specifications
Capacity
Rise
Outside Dimensions
Inside Dimensions
Arms and Pads
Power Unit and Voltage
Shipping and Delivery
Features
- •Under-car project package combines the MAX7 portable two-post lift with tall adapters, frame cradle pads, an oil drain and a reclining creeper.
- •NEW BendPak ASARS™ automatically locks the swing arms as the lift rises, using 360° holding grip to help prevent unintended arm movement during lifting and service.
- •An additional 3 inches of lift height over the previous M7K create more clearance for work beneath the vehicle.
- •Reclining creeper supports you during under-vehicle tasks, bringing working comfort to maintenance, repair and upgrade projects.
- •Tall adapters add pad-height options; frame cradle pads provide contact options for compatible frame lifting points.
- •Included oil drain provides a dedicated way to collect used oil during service.
- •Telescoping screw pad adapters now come standard: four adapters with 35 mm pins, SKU 5210524, and 1.5 inches of lift-pad adjustment.
- •7,000-lb. lifting capacity supports loads up to 3,500 lbs. per axle and 1,750 lbs. per arm.
- •50.25-inch maximum lifting height is measured with the lift pad at its high setting and one stackable adapter.
- •Seven lift-height safety lock positions let you select a working elevation independently of the ASARS swing-arm restraints.
- •Removable columns roll aside for storage after use, while recessed drop-in anchors retain the prepared floor mounting locations.
- •Base-plate spacing can be set between 105 and 135 inches to configure the lift layout.
- •Telescoping arms extend 26.5 to 41.25 inches from pivot center to lift-pad center for positioning at vehicle lifting points.
- •Hydraulically equalized lifting reaches full rise in approximately 45 seconds; actual rise and descent times depend on vehicle weight.
- •A mobile cart supports the hydraulic power unit and flow divider, complementing the lift’s portable column design.
Permits, Codes & Certification Disclaimer
Product requirements vary by location. Unless expressly stated on the applicable product page or in an official BendPak publication, BendPak does not represent or warrant that any BendPak or Ranger product complies with the permits, licenses, building codes, seismic requirements, certifications, standards, laws or regulations applicable to the buyer’s location or intended use.
The buyer is solely responsible for determining and obtaining all approvals required for the purchase, installation and operation of the product, including permits, licenses, inspections and structural, electrical, seismic or building-code compliance. BendPak is not responsible for related costs, modifications, delays, fines, penalties, liens or other charges imposed by any governmental authority, agency, utility, property owner or other third party.
Not all BendPak lift models are ALI Certified or meet the applicable requirements of ANSI/ALI ALCTV and ANSI/UL 201. Current certification information is available through the Automotive Lift Institute’s Directory of Certified Lifts at autolift.org or by contacting BendPak.
