MaxJax MAX7 Standard Portable Car Lift Package - 7,000-lbs. Capacity
$5,395.00

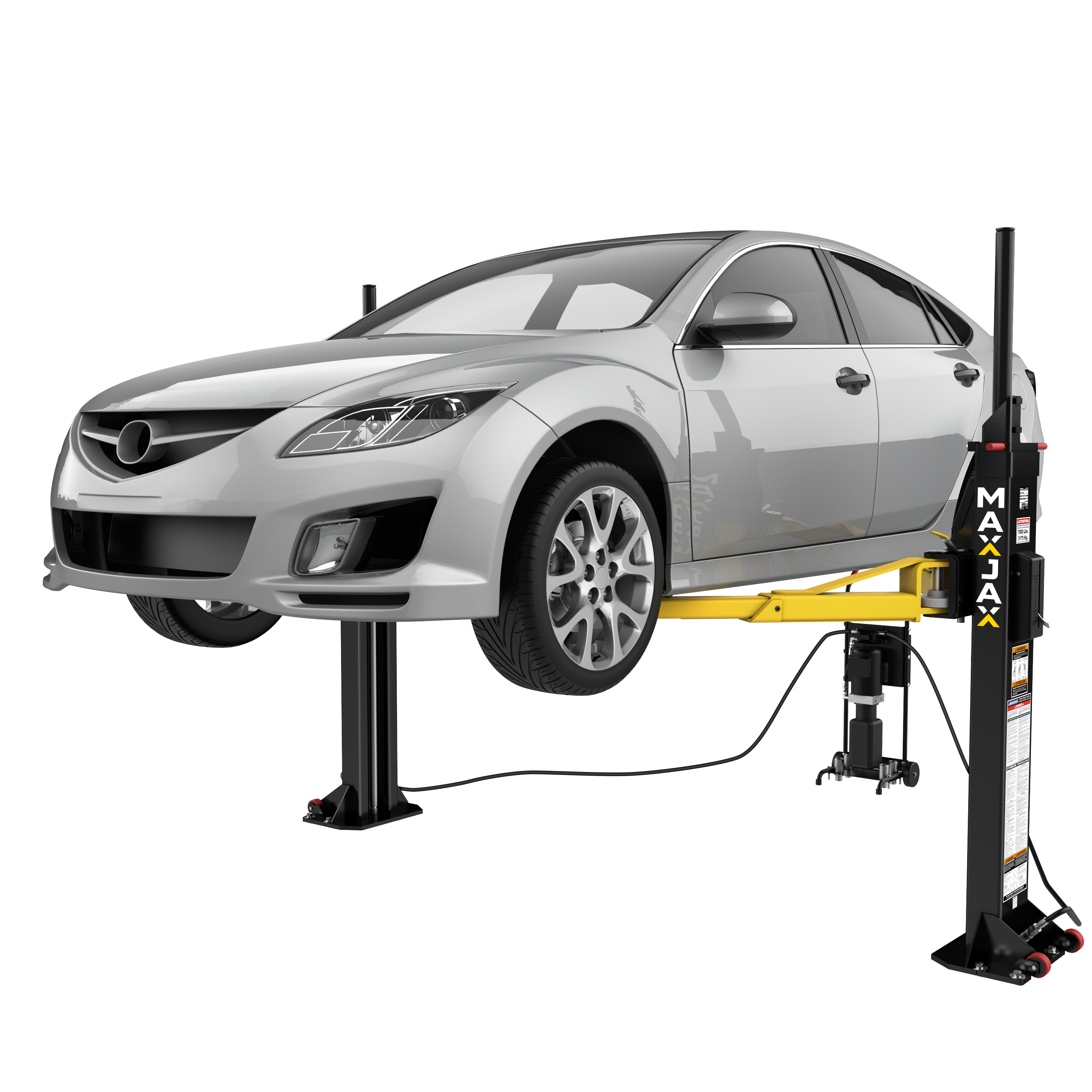

MAX7 Standard Package: Put Your Garage to Work

A capable home garage starts with access to the vehicle. The MaxJax MAX7 Standard Package delivers 7,000-lb.-capacity portable two-post lifting in a 110V configuration, giving you a foundation for maintenance, repairs and the projects you have been waiting to tackle. The new MAX7 adds BendPak ASARS™ automatic swing-arm restraints, lifts 3 inches higher than the previous M7K and now includes telescoping screw pad adapters. Set the lift up around your available space and the vehicle’s approved lifting points. When the work is finished, its removable rolling columns let the garage serve its next purpose. Choose this package to build your setup around the upgraded MAX7 and add service accessories as your projects grow.
MAX7 Standard Package: Put Your Garage to Work

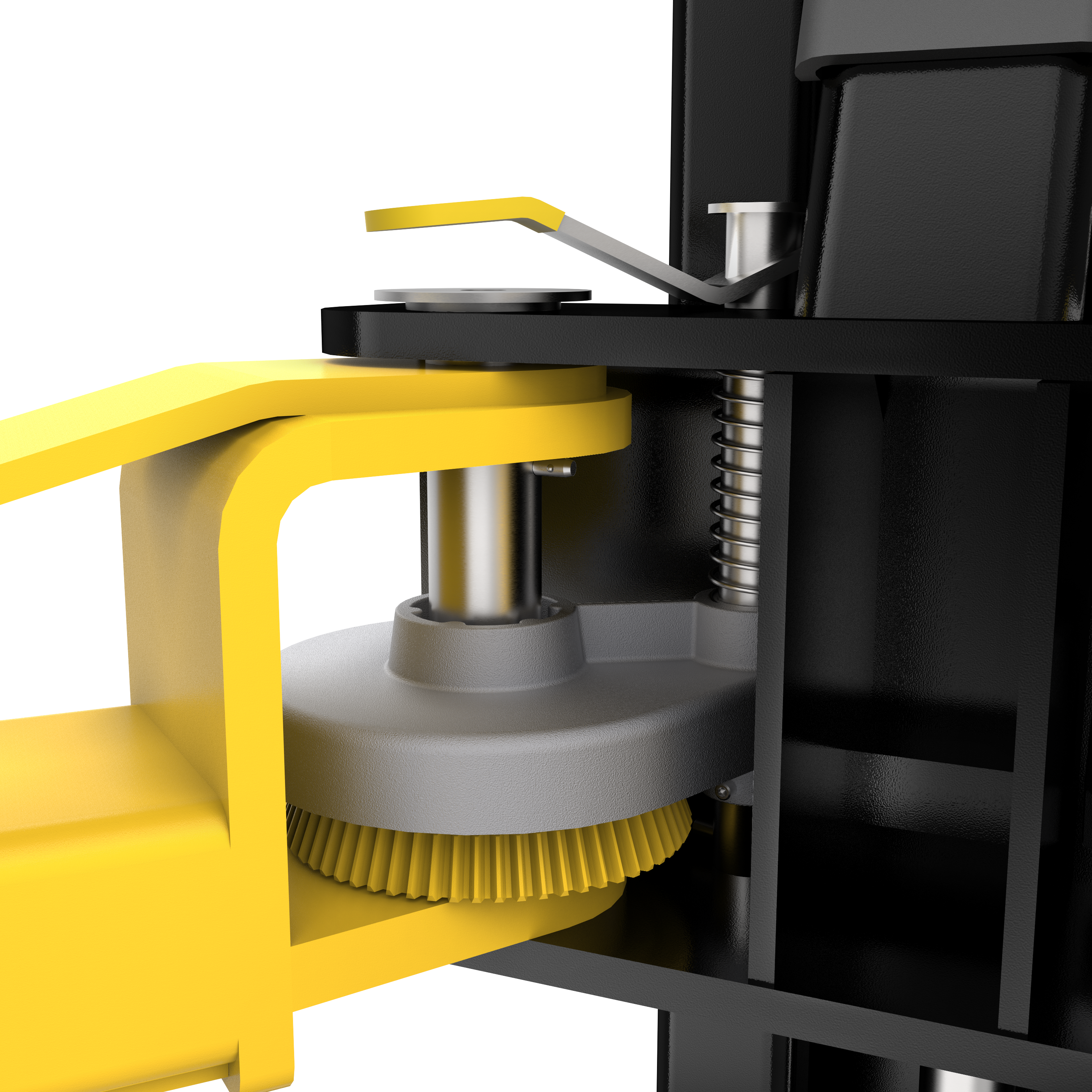

BendPak ASARS™ Brings Automatic Arm Restraint Home

BendPak ASARS™ Brings Automatic Arm Restraint Home

The MAX7 brings BendPak’s Automatic Swing Arm Restraint System to a portable two-post car lift for your own garage. ASARS™ automatically locks the swing arms as the lift rises, using 360° holding grip to help prevent unintended arm movement during lifting and service. It is a major upgrade for controlling swing-arm movement. Seven separate safety lock positions provide a choice of lifting heights. A hydraulically equalized system synchronizes the lift, while the mobile power unit cart supports the hydraulic power unit and flow divider. The result is a compact lifting setup with features built around the work you do beneath the vehicle.

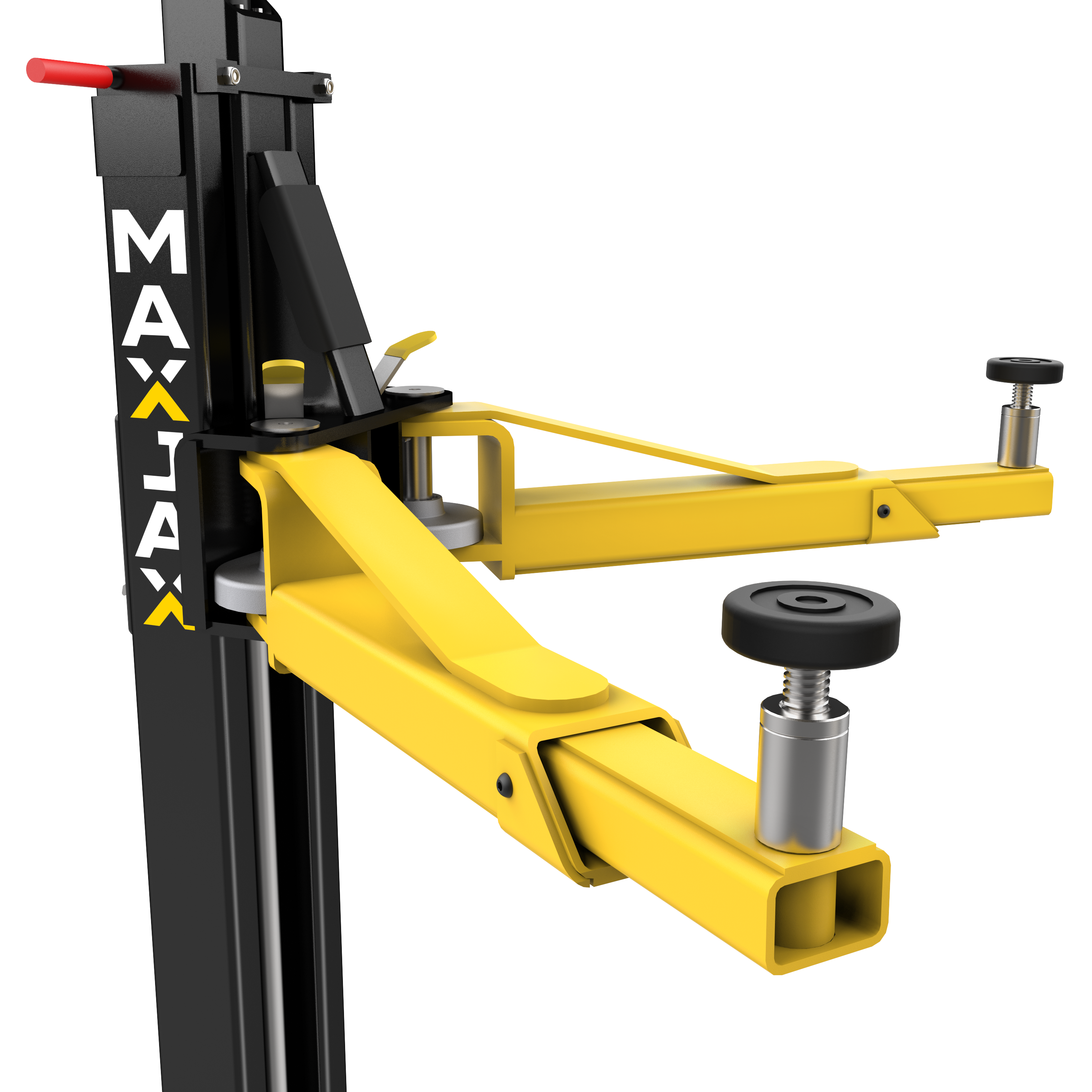

3 More Inches Under the Vehicle. Adapters Already Included.

More clearance makes a difference when the next job takes you beneath the vehicle. The MAX7 rises 3 inches higher than the M7K and reaches a maximum lifting height of 50.25 inches, measured with the lift pad at its high setting and one stackable adapter. That additional room gives maintenance and repair work more breathing space. A set of four telescoping screw pad adapters with 35 mm pins now comes with the lift. Their 1.5-inch adjustment range helps fine-tune lift-pad height, while the telescoping arms extend from 26.5 to 41.25 inches from pivot center to pad center. Adjust the arms and pads to the vehicle’s approved lifting points before raising it.
3 More Inches Under the Vehicle. Adapters Already Included.

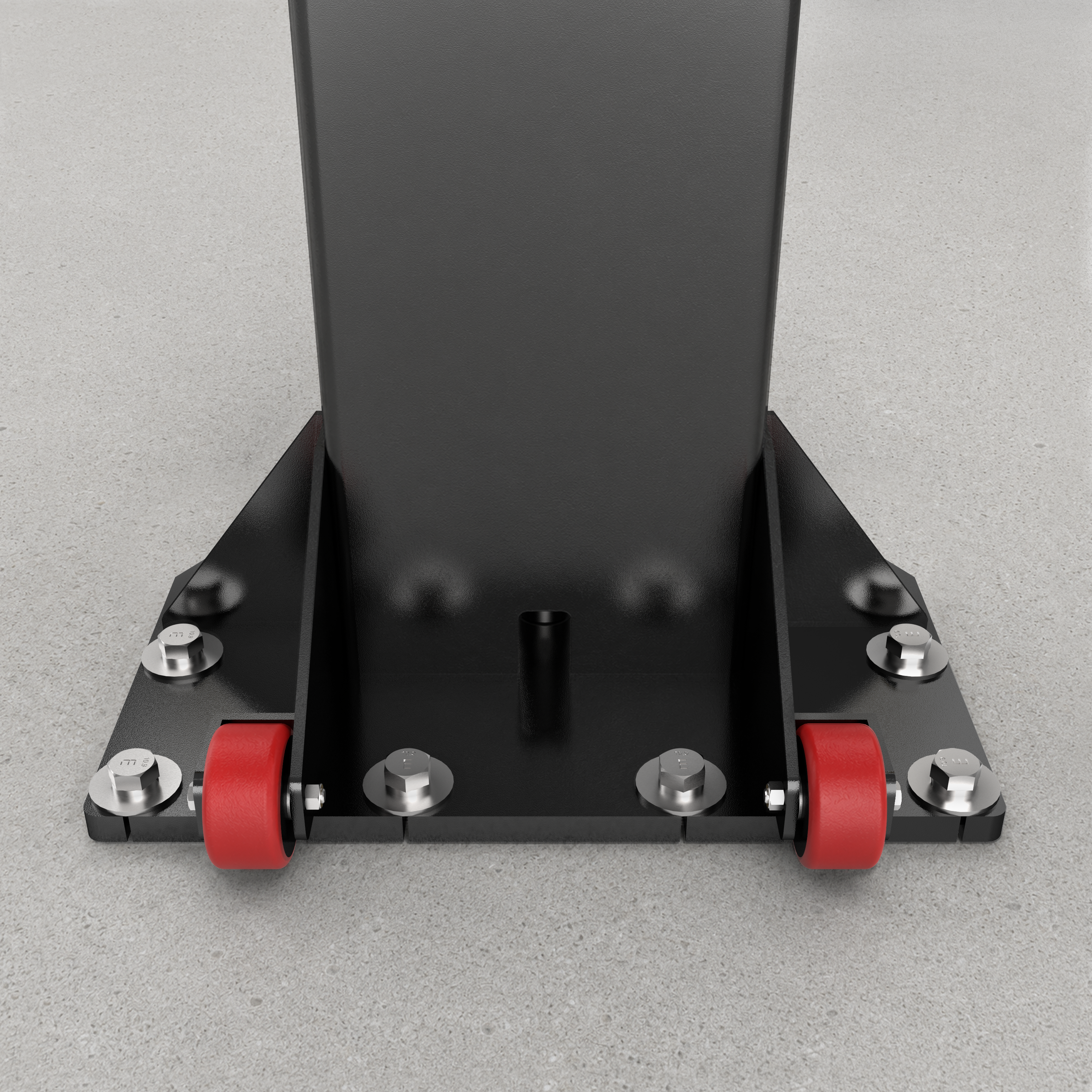

Bolt Down for the Job. Roll Away for What Is Next.

Bolt Down for the Job. Roll Away for What Is Next.

Your garage may be a service bay on Saturday and parking space on Sunday. The MAX7’s columns bolt securely to the floor for lifting, then disconnect and roll away for storage after use. Recessed drop-in anchors keep the prepared mounting locations in place, so the lift can return to the same setup. Column spacing can be configured from 105 to 135 inches between the base plates. The columns measure 67.25 inches overall, with the cylinder heads reaching 95.75 inches above the floor at full rise. Plan for the raised vehicle and moving lift components when checking overhead clearance. Standard Package electrical specifications are 110V, 50–60 Hz, single-phase, 23A.

Build Your Garage Around MAX7

Start with the 7,000-lb.-capacity portable two-post lift in its 110V Standard Package. It gives you the upgraded MAX7 as a foundation for your own maintenance and project setup.

ASARS™ Comes Home

BendPak’s automatic swing-arm restraint system locks the arms as the lift rises. Its 360° holding grip helps prevent unintended movement during lifting and service.

Reach 3 Inches Higher

Raise your working clearance above the previous M7K. MAX7 reaches 50.25 inches at maximum lift height with the pad at its high setting and one stackable adapter.

Fine-Tune the Pads

Four telescoping screw pad adapters are included with the lift. Their 35 mm pins and 1.5-inch adjustment range give you a way to fine-tune pad height during vehicle setup.

Give the Floor Back

The columns bolt down securely during use and roll aside after removal. Recessed anchors retain the mounting locations while the garage goes back to parking, storage or the next project.

Configure Your Working Space

Set column spacing from 105 to 135 inches between the base plates. Adjustable telescoping arms and seven height lock positions help configure the lift for the task and approved vehicle lifting points.

Specifications

Capacity

Lifting Capacity
7000 lb
Max Capacity Per Arm
1750 lb

Rise

C Max Lifting Height with Pad
50.25 in
D Min Lifting Height with Pad
5.25 in
Lifting Time
45 seconds

Outside Dimensions

E Height
95.75 in
F Width
109 - 139 in

Inside Dimensions

H Inside Columns
95.5 - 125.5 in
I Drive-Thru Clearance
70.75 - 100.75 in

Arms and Pads

K Front Arm Reach Min
26.5 in
K Front Arm Reach Max
41.25 in
L Rear Arm Reach Min
26.5 in
L Rear Arm Reach Max
41.25 in
Screw Pad Adjustment
1.5 in

Power Unit and Voltage

Horsepower
2 HP
Voltage
110V / 50/60 Hz / 1-Phase
Sound Level
60 dBA

Shipping and Delivery

Shipping Dimensions
35 x 68 x 39 in
Shipping Weight
980 lb
Shipping Method
LTL
Offload Requirement
Liftgate

Features

  • •BendPak ASARS™ automatically locks the swing arms as the MAX7 rises, with 360° holding grip to help prevent unintended arm movement.
  • •A 3-inch lift-height increase over the M7K creates more clearance for home-garage maintenance and repair projects.
  • •Telescoping screw pad adapters now come standard: four adapters with 35 mm pins and 1.5 inches of height adjustment.
  • •7,000-lb. lifting capacity, subject to maximum loads of 3,500 lbs. per axle and 1,750 lbs. per arm.
  • •110V Standard Package power specification: 50–60 Hz, single-phase, 23A.
  • •A two-post lifting layout provides access beneath the vehicle for hands-on service and project work.
  • •Rolling columns move aside for storage after the lift is lowered, disconnected and unbolted from its mounting points.
  • •Recessed drop-in floor anchors preserve the prepared locations when the columns are removed.
  • •Configure base-plate spacing between 105 and 135 inches to suit the planned lift installation.
  • •Telescoping arms adjust from 26.5 to 41.25 inches, measured between the arm-pivot center and lift-pad center.
  • •Seven height safety-lock positions give the operator a choice of working levels, separate from the ASARS arm restraints.
  • •Hydraulic equalization synchronizes lifting between the two columns.
  • •The hydraulic power unit and flow divider are supported on a mobile cart.
  • •Approximately 45 seconds to full rise, with actual rise and descent times dependent on vehicle weight.
  • •Maximum lifting height is 50.25 inches with the pad adjusted high and one stackable adapter.
Permits, Codes & Certification Disclaimer

Product requirements vary by location. Unless expressly stated on the applicable product page or in an official BendPak publication, BendPak does not represent or warrant that any BendPak or Ranger product complies with the permits, licenses, building codes, seismic requirements, certifications, standards, laws or regulations applicable to the buyer’s location or intended use.

The buyer is solely responsible for determining and obtaining all approvals required for the purchase, installation and operation of the product, including permits, licenses, inspections and structural, electrical, seismic or building-code compliance. BendPak is not responsible for related costs, modifications, delays, fines, penalties, liens or other charges imposed by any governmental authority, agency, utility, property owner or other third party.

Not all BendPak lift models are ALI Certified or meet the applicable requirements of ANSI/ALI ALCTV and ANSI/UL 201. Current certification information is available through the Automotive Lift Institute’s Directory of Certified Lifts at autolift.org or by contacting BendPak.
